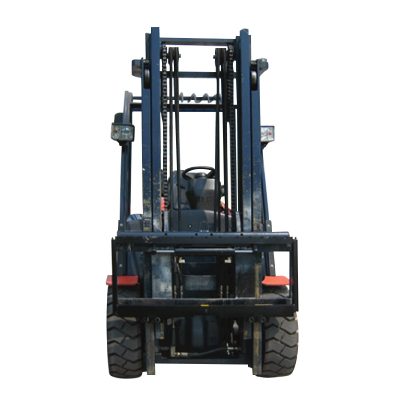

Forklift Turnaload Attachment - Fujian Huamai Machinery Co., Ltd.

Eigenschaften

1.High-strength all-steel structure design, always of high efficiency under continuous operation.
2.E-slot in the overall framework to improve the stability of product, to extend the longevity of product
3.Reasonable design, nice outlook, using the world's most high-quality hydraulic components.
4.Fast arm opening speeds with less energy consumption
5.Rugged lightweight construction
6.High net capacity.
7.Excellent visibility

Spezifikation

Kapazität @ Ladezentrum (kg @ mm)	Modes	Montageklasse	Öffnungsbereich (mm)	Fork Size t (mm)	Rahmenbreite (mm)	Fork Spacing (mm)	Vertikaler Schwerpunkt CGV (mm)	Wei ght (kg)	Effe ctive Thic kness ET (mm)	Hori zontal Center of Gravity CGH (mm)
1600@600	TAL20D-001A	II	580-1860	50x125x1000	1040	450	265	720	300	330
1600@600	TAL20D-002A	II	480-1720	45X125X1070	940	700	265	680	295	325
1600@600	TAL20D-003A	II	620-1900	50X125X1200	940	560	265	750	300	330
1600@600	TAL20D-004A	II	715-1960	45X125X1220	940	850	265	662	295	325
1600@600	TAL20D-005A	II	660-1900	45X125X1220	940	450	265	750	295	325
1600@600	TAL20D-006A	II	555-1830	50X125X1200	1040	560	265	750	300	330
1600@600	TAL20D-007A	II	618-1830	40X125X1220	940	635	265	662	290	325
2300@600	TAL30D-001B	III	640-1970	50X125X1220	1015	635(4 FORKS)	270	780	345	300
2300@600	TAL30D-002B	III	710-2060	50X125X1500	1015	890(6 FORKS)	270	980	345	300
2300@600	TAL30D-003B	III	710-2060	50X125X1220	1015	890(4 FORKS)	270	780	345	300
2300@600	TAL30D-004B	III	770-2115	50X125X1220	1015	890(4 FORKS)	270	790	345	300
2300@600	TAL30D-005B	III	710-2060	50X125X1220	1015	635(4 FORKS)	270	780	345	300
2300@600	TAL30D-006B	III	640-1950	50X150X1220	1050	635(4 FORKS)	270	880	345	300
2300@600	TAL30D-007B	III	710-2060	50X150X1220	1015	754(4 FORKS)	270	760	345	300

Hinweis

1. Beziehen Sie die tatsächliche Kapazität des Gabelstaplers und der Anbaugeräte vom Hersteller des Gabelstaplers.
2.Zwei Sätze zusätzlicher Ölkreislauf am Gabelstapler erforderlich
3.Opening range is the space between two arms tip.
4.Fork size can be customized according to user requirements.
5. Bitte kontaktieren Sie den Vertrieb von HUAMAI

Hydraulikfluss & Druck

Modell	Min.Hydraulic Flow (L / min)	Empf. Hydraulikfluss (l / min)	Max.Hydraulic Flow (L / min)	Empf. Hydraulikdruck (Bar)	Max. Hydraulikdruck (Bar)
TAL20D	20	40	60	35	160
TAL30D	20	40	60	35	160

Rotator-Spezifikation

Modell	Drehzahl	Drehmoment des Rotators
TAL20D	5.2r/min@57L/min	9000N.M@160Bar
TAL30D	5.2r/min@57L/min	9000N.M@160Bar

Optionen

Gabeln
Stoppmechanismus mit 180-Grad-Drehung

Anwendung

Turnaloads not only can be used for holding cargos, but also be used for forking goods with pallet. Improve transport efficiency, reduce the damage of tray. Turnaloads applied to tobacco, papermaking, chemical fiber, waste, ports and other industries. Rapid handing and stacking operation.

Schnelle Details

Ursprungsort: Fujian, China (Festland)
Markenname: HUAMAI
Model Number: TAL20D-004A
Product Name: Turnaload for forklift
Type: TAL20D-004A
Montageklasse: II
Opening Range: 715-1960mm
Fork Size t(mm): 45X125X1220mm
Rahmenbreite (mm): 940 mm
Fork Spacing (mm): 850mm
Effective Thickness(mm): 295mm
Horizontal Center of Gravity (mm): 325mm
Vertical Center of Gravity CGV (mm): 265mm

Gabelstapler-Anbaugerät
