Gabelstapler-Betonklingel-Blockklemmen der hohen Qualität für Verkauf

Zuhause / Alle Anhänge / Gabelstapler-Betonklingel-Blockklemmen der hohen Qualität für Verkauf

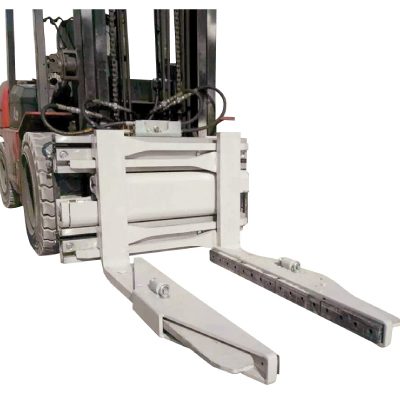

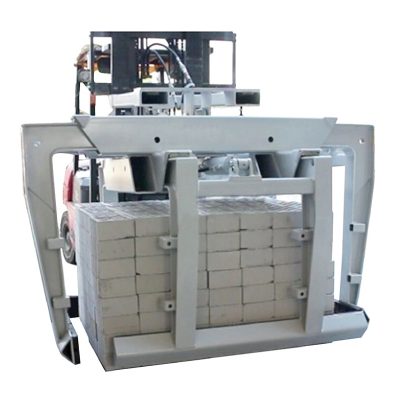

Block-Zupacken

Eigenschaften


1.Structure with complete steel and high strength meets special requirements.
2.Structural designation makes field of vision widely for operator.
3.Used removable type article wear-resisting, after wearing is easy to replace economic and practical.
4.Can be rotated and field to make effective if needed.

Hydraulische Gabelstapler-Betonsteine / Block-anhebende Klammer

Spezifikation


Capacity Range

(kg)

 Modell

Holding Width

(mm)

 Hochheben

(mm)

Tilting Angle

Rotating Angle

Telescopic Length

(mm)

 5000-8000

 BTC-GX

 Min

240x4=960

Max

240x6=1140

 5600

 6-12°

 90-120°

 400-800

Videos



Die tatsächliche Kapazität des Gabelstaplers und der Anbaugeräte erhalten Sie vom Hersteller des Gabelstaplers.

Holding width refers to the length of the standard bricks for 200-240mm, 4-6 bricks, the width of the size need to be measured and confirmed.
Bitte wenden Sie sich an den Vertrieb von HUAMAI

Anwendung

Bell type block clamps can complete function of hoisting, tilting, rotation, scaling, clamp, excellent comprehensive performance.

Skilled application of hydraulic technology, with hydraulic components protection, can fully meet the needs of the working condition of brick industry.

Schnelle Details


Ursprungsort: Fujian, China (Festland)
Markenname: HUAMAI
Model Number: BTC-GX
Product Name: Bell type block clamps
Model: BTC-GX
Lifting Height (mm): 5600mm
Tilting Angle: 6-12°
Rotating Angle: 90-120°
Telescopic Length (mm): 400-800mm
Capacity Range (kg): 5000-8000


Block clamp

Anwendungen

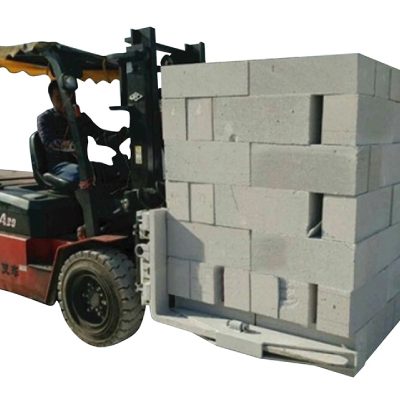

1.Concrete block clamp can efficiently handle various types of solid, regular cubic goods under normal temperature.

2.Widely used in construction material, metallurgy industries for handling concrete blocks, cement bricks, carton cubes, etc.

3.The high structural strength and durability ensura the safe, productive application and long service life.

Eigenschaften

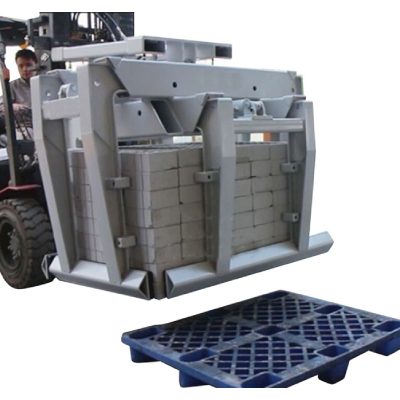

1.The item doesn't need to be put on pallet to be transported. If need be, they can be put on a pallet and after than they can be handled by a traditional forklift too.

2.Proven durable T-beam arm aluminium frame construction.

3.Superior Arm-Gleitlager für längere Lebensdauer.

4. Regenerative Hydraulikventile für optimale Armgeschwindigkeit.

5.Durable contact pads, reliable clamping.

6.Excellent driver visibility.

Vorteile

HUAMAI is your best choice by the following reasons:

1.Professional & Experienced: We have more than 10 years experience in this field. Our professional technical team who come from world leading companies have been concentrating on provide the high quality products for you.

2.Heavy duty attachments: HUAMAI can provide a series of heavy duty attachments which the capacity load are more than 6 tons, while other factories can not reached.

3.Competitive price: After years of development, we are able to provide the excellent quality products with a competitive price based on a large number of outstanding suppliers that we have accumulated.

4.Total solution: Our sales are willing to visit your company and help you increase efficiency and create value by provide a total solution, such as practical advices and customized products.

, , ,
